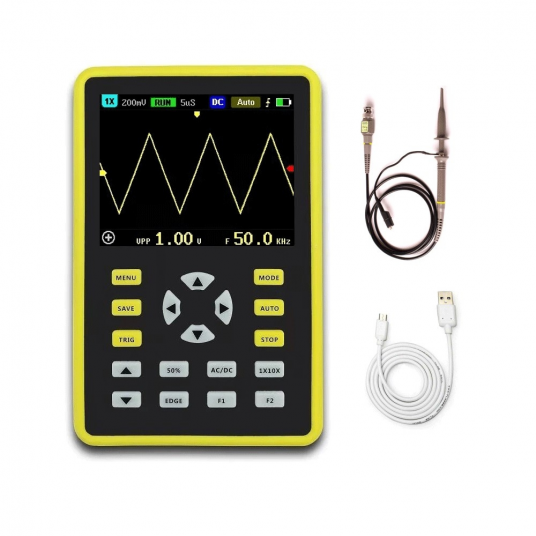

Handheld Digital Portable Oscilloscope Mini Storage Kit 2.4'' TFT LCD

Versatile, highly practical, and cost-effective handheld oscilloscope for the maintenance industry and R&D industry with real-time sampling rate up to 500MS / s and 100MHz analog bandwidth.

The full trigger function (single, normal, automatic) is freely available for both periodic analog signals and non-periodic digital signals. Built-in high voltage protection modules withstand Up to 400V continuous voltage and 600V peak voltage.

You do not have to worry about the oscilloscope's burning, as the high voltage is not brought to the 10X position. Great time-based scanning mode that tracks slow level changes. Equipped with a highly efficient one-button AUTO, the measured waveform can be displayed without complicated adjustments. The screen is 2.4 inches 320 * 240 resolution TFT full vision technology with a high-resolution LCD screen. The visual effect is very good.

Extremely Comfortable and Fast Waveform

Warehouse function, built-in 64M Warehouse space, can store up to 2000 waveform pictures, the Warehouse operation is simple and fast, it does not save the current waveform anytime and anywhere, with just one touch, cumbersome tips, and choices. Powerful waveform file manager, thumbnail browsing, viewing, detail viewing, page-turning, Support for deletion, and more.

Long Use Time & High-Quality Protection

The built-in 3000mAh high-quality lithium battery can be used continuously for 8 hours when fully charged. The body is equipped with high-quality silicone protective cover, non-toxic and lead-free environmental protection, non-slip, anti-shock, shockproof, comprehensive protection of the body, soft texture, and feels very comfortable.

Handheld Digital Portable Oscilloscope Mini Storage Kit 2.4'' TFT LCD Features:

• Intelligent anti-burn Can withstand voltage up to 1 X 600V
• Extremely bright display technology
• 2.4 inch TFT color screen
• 100 MHz analog bandwidth @ 500MS / s sampling rate(1X = 5MHz,10X = 100MHz)
• One-touch waveform Warehouse
• Internal 64M Warehouse space, maximum Warehouse for 2000 waveform
• The powerful waveform file manager supports thumbnail scanning, viewing, detail viewing, translation, deletion, and other functions
• High measuring voltage range, can measure 1X 0 ~ 80V, can measure 10X 0 ~ 800V
• Measurement up to 12 parameters:VPP,VP,Vmax,the VM,Vavg,Vrms,Stylish,Mission +,duty,Time +,challenge time,time
• At any time, the waveform indicator (pause function) is frozen
• AUTO with a high-efficiency button
• Full trigger function (single, normal, automatic)
• 3000mAh rechargeable lithium battery Fully charged for 8 hours of continuous use
• Screen brightness adjustment
• Memory compression technology, waveform refresh screen does not flicker
• Anti-slip non-slip silicone case
• Ultra-small volume, easy to carry

Specifications:

• Analog bandwidth: 100MHz
• Maximum real-time sampling rate: 500MS / s
• Vertical sensitivity: 50 mV / div ~ 100 V / div
• Horizontal time base range: 50S / div ~ 6nS / div
• Maximum test voltage: 80 V (1X probe), 800 V (10X probe)
• Storage depth: 128KB
• Input resistance: 1M
• ADC precision: 8bits
• Coupling mode: AC / DC
• Trigger mode: Single, Normal, Auto
• Trigger edge: Ascending/descending edge
• External trigger voltage 0 - 80 V
• Screen: 2.4 inch - 320 * 240 - TFT process
• Power supply: 3000 mAh lithium battery
• Size: 114mm x 74mm x 33mm
• Weight: 300g

Package Includes:
